Stock # 99

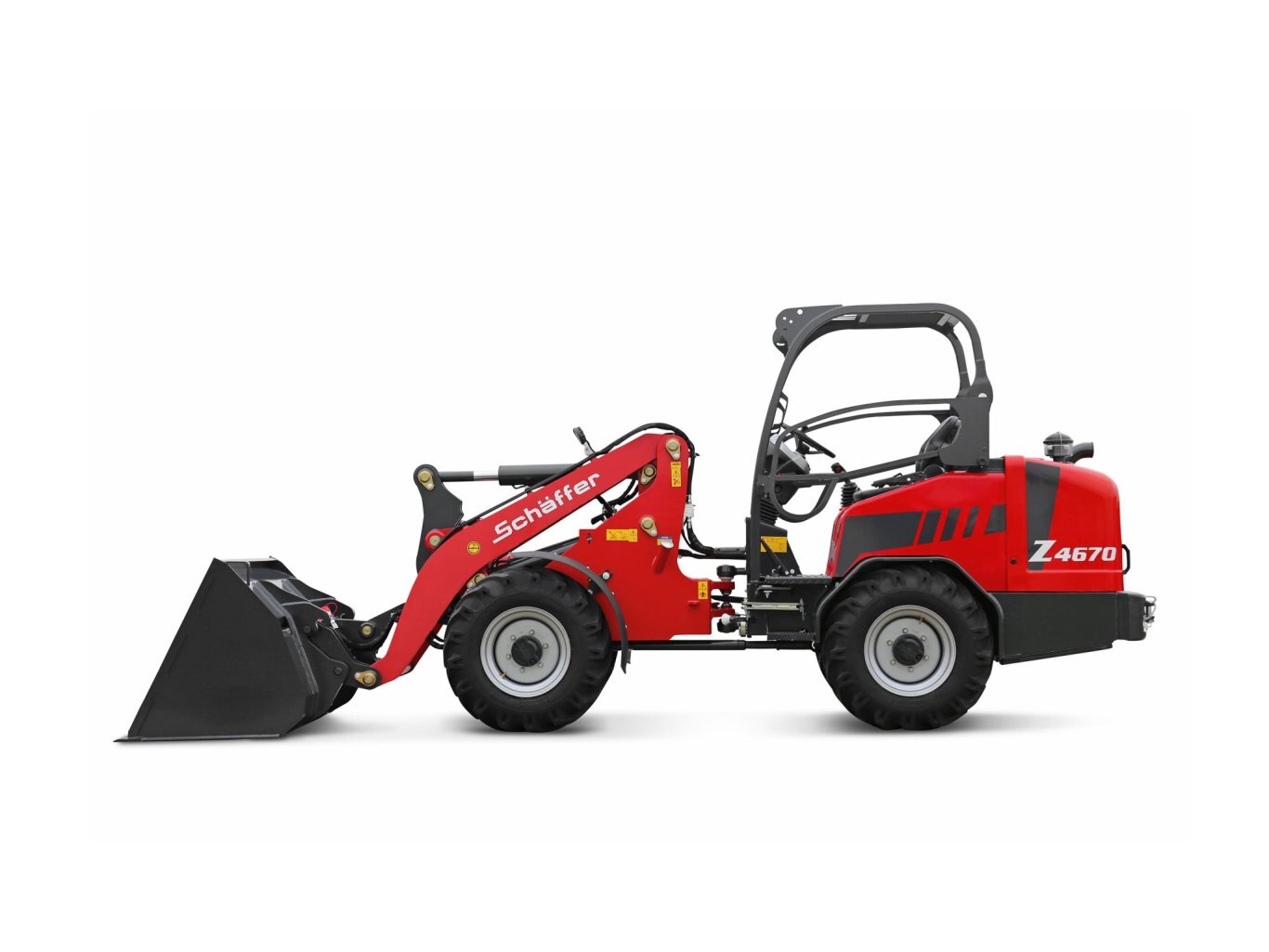

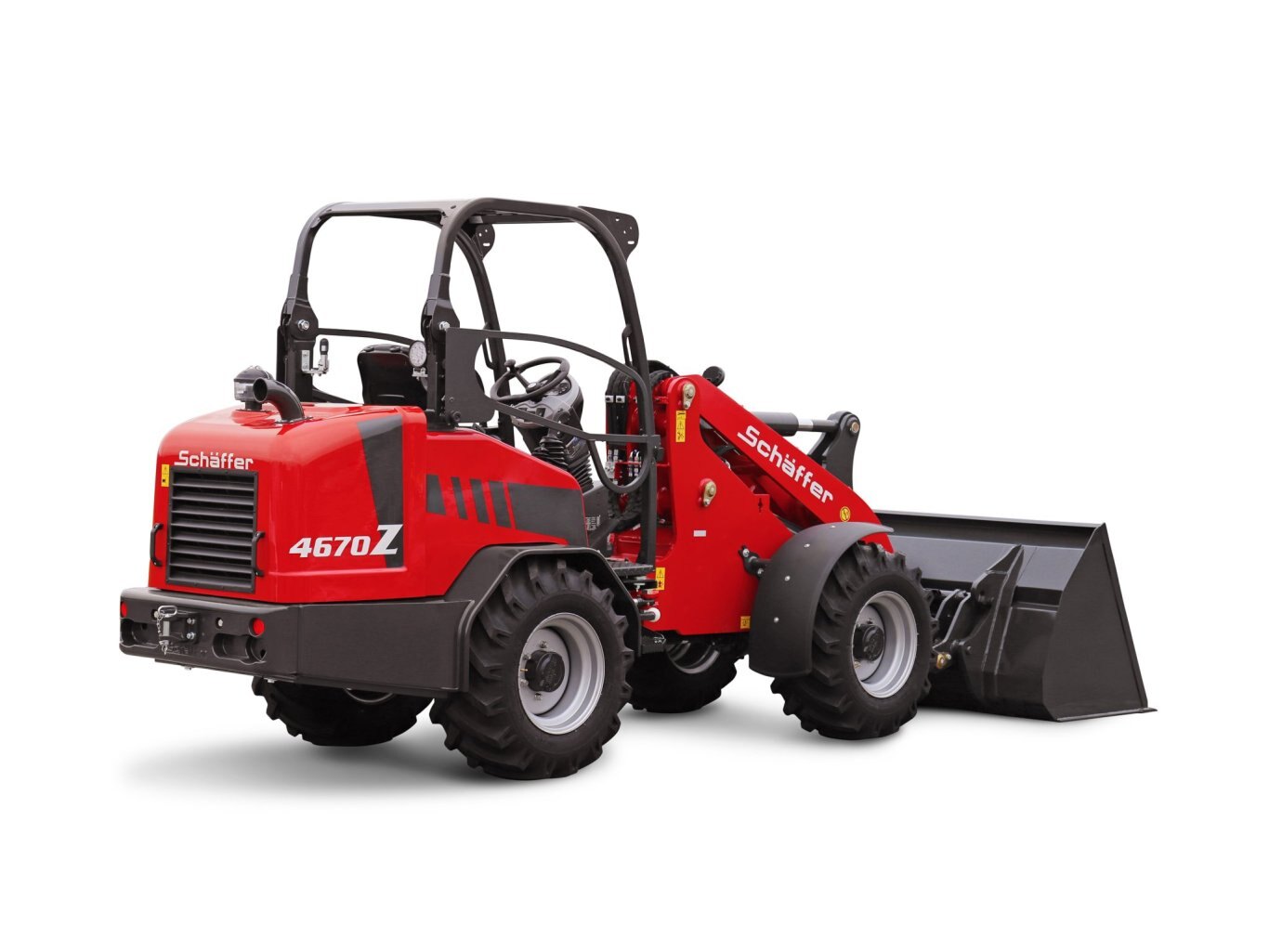

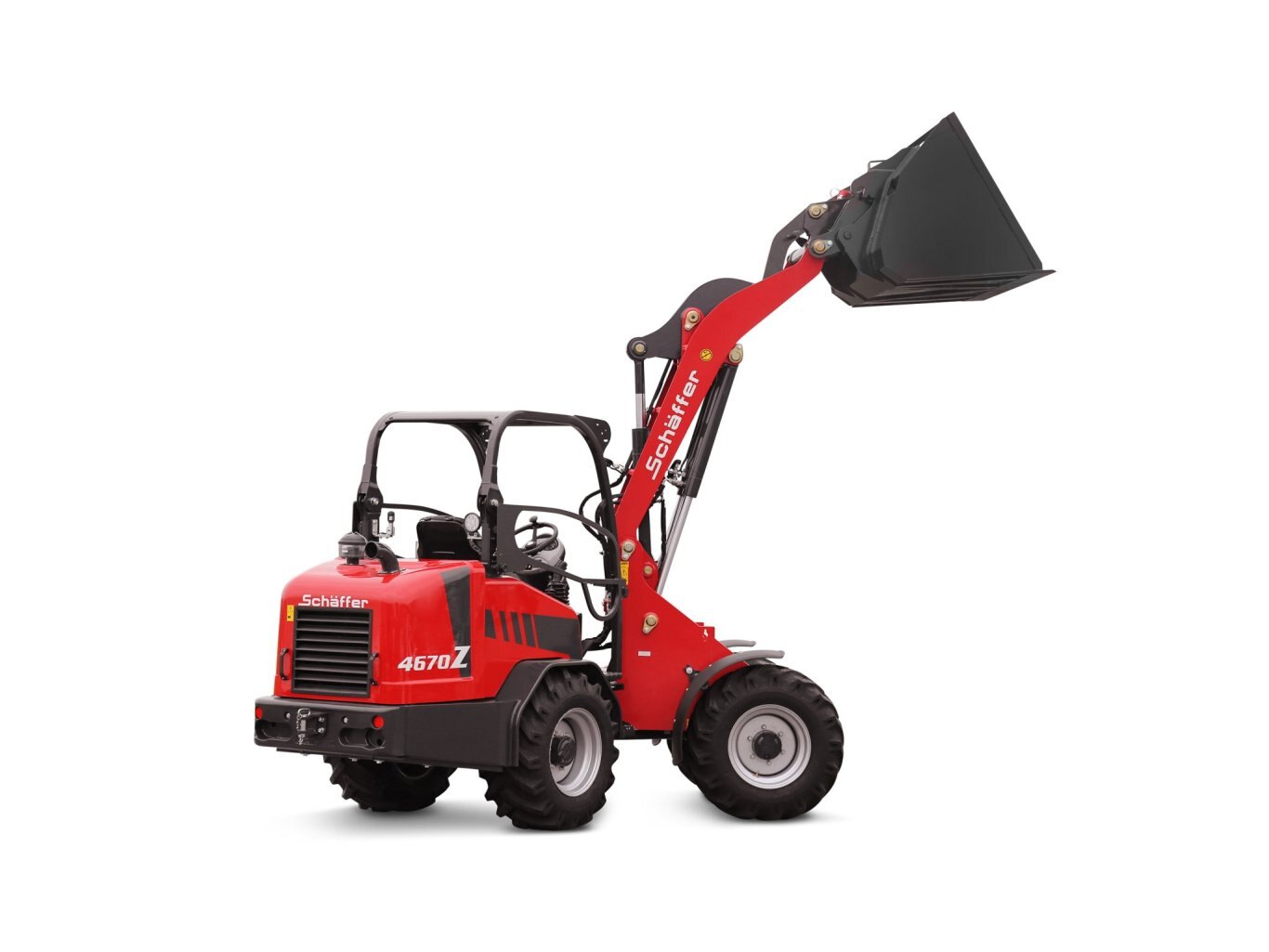

Schaffer Wheel loader 4670 Z

Name: Schaffer Wheel loader 4670 Z
Brand: Schaffer
Availability: InStock

In Stock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Specifications

Model

4670 Z

Category Name

Agriculture

Year

2026

Sale Type

New

Manufacturer

Schaffer

standard equipment

4-cylinder diesel engine Kubota V2403-CR-T, 48.6 kW (66 HP)
DOC and DPF for compliance with Stage V emissions standards
Hydrostatic four wheel drive with automotive control
High-pressure drive HD-plus
Tyres 11.5/80-15.3 AS, offset +40
HTF (High Traction Force)
SPT (Schäffer Power Transmission)
ECO Mode
Hydraulic quick gear 20 km/h switchable under load
HD planetary axles with self-locking differentials, wide design 6 hole
Combined oil cooler
Multiple disk brake, maintenance free; service and parking brake
Maintenance free articulated pendulum joint
Restraining system for protection roof
LED working headlights: 2 x front, 1 x rear
Z-bar boom with parallel lift
Additional control device electrically switchable on joystick
Working hydraulics standard / options: 76 / 70 + 70 (double gear pump) 108 l/min MHF
Adjustable steering column
Hour meter, rev, counter, fuel control lamp and temperature indicator
Armrest right hand side
Rear weight end plate
Main battery switch (cab version)
Wide chassis
Driver-on-board switch
Headstock type wheel loader with hydraulic tool lock

technical data

Engine
- Type: 4-cylinder diesel engine Kubota V2403-CR-T
- Capacity / option: 48.6 kW (66 HP)
- Exhaust gas treatment / emission level: DOC, DPF / V
Tyres
- Standard tyres: 11.5/80-15.3 AS, ET+40
- Option I: 15.0/55-17
- Option II: 33x15.5-16.5 SKD, ET+35
- Option III: 425/55-17 AS
Electric system
- Operating voltage: 12 V

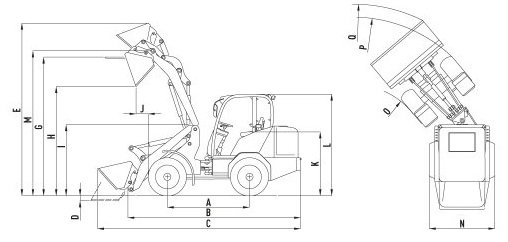

Dimensions
- (A) Wheelbase: 2,000 mm
- (B) Chassis length: 4,080 mm
- (C) Overall length with standard bucket: 4,760 mm
- (D) Digging depth: 120 mm
- (E) Max. working height: 4,060 mm
- (G) Loading height with pallet forks: 3,050 mm
- (H) Max. dumping height: 2,500 mm
- (I) Front end height: 1,570 mm
- (J) Dumping width: 640 mm
- (K) Seat height: 1,270 mm
- (L) Protective roof height: 2,270 mm
- (L) Cab height: 2,270 mm
- (M) Max. bucket pivot point: 3,260 mm
- (N) Overall width / option: 1,420 (1,600 turned) / 1,500 - 1,730 mm
- (O) Inner turning radius: 1,425 mm
- (P) Outer turning radius: 2,845 mm
- (Q) Outer radius with standard bucket: 3,175 mm
Drive
- Traction hydraulics: Hydrostatic-automotive
- Axles: Original Schäffer axles, 6 wheel nut rim; planetary axle and automatic limited slip brake
- Speed / option: 0 - 20 km/h in 2 gear switchable under load / 0 - 30 km/h
Brakes and steering
- Service braking system: Combined brake hydrostatic and multi-disc brake
- Parking brake: Multi-disc brake running in oil bath
- Steering: Fully hydraulic articulated-swivel steerin
Tank capacity
- Fuel: 95 l
- Hydraulic oil: 95 l
Working hydraulics
- Delivery rate: 76 l/min / 70 + 46 (double gear pump) l/min / 115 (MHF) l/min
- Operat. pressure: 210 bar
Weights
- Operating weight protective roof incl. Original tyres, driver and standard bucket: 3,400 kg
- Operating weight cabin incl. Original tyres, driver and standard bucket: 3,520 kg
- Lifting capacity: 2,400 kg
- Tipping load, straight, pallet fork acc. to ISO 8313: 1,823 - 2,149 kg
- Tipping load, straight, bucket acc. to ISO 8313: 2,120 - 2,428 kg
- Tipping load, articulated, pallet fork acc. to ISO 8313: 1,700 kg
- Tipping load, articulated, bucket acc. to ISO 8313: 1,950 kg
- Payload, pallet fork, even ground acc. to EN 474-3: 1,136 kg
- Payload, pallet fork, uneven ground acc. to EN 474-3: 852 kg
- Payload bucket acc. to ISO 14397-1: 880 kg
Sounds and vibration
- Sound pressure level LpA: 85 db(A)
- Sound power level guaranteed LwA: 101 db(A)
- Sound power level equivalent LwA: 100 db(A)
- Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
- Total body vibration acc. to ISO 8041: <0,5 m/s²
Transport of materials
- Specific material weight: 1,6 t/m³
- Bucket volume acc. to ISO 8041: 0,55 m³
- Recommended bucket width: 1,3 m

Dimensions wheel loaders

tyres loader

Dimension	Diameter (mm) / Width (mm)	Rim offset	Loader width (mm)	Tread	Tread options
11.5/80-15.3	860 / 295	40	1,420 (1,600)	AS	MPT
11.5/80-15.3	860 / 295	-5	1,500	AS	MPT
15.0/55-17	860 / 390	85	1,420	AS
15.0/55-17	860 / 390	45	1,510 (1,690)	AS
15.0/55-17	860 / 390	0	1,590	AS
15.0/55-17	860 / 390	-40	1,670	AS
425/55-17	900 / 425	45	1,540 (1,730)	AS
425/55-17	900 / 425	0	1,630	AS
425/55-17	900 / 425	-40	1,710	AS
425/55R17	900 / 425	45	1,540	FL693 M
425/55R17	900 / 425	0	1,630	FL693 M
425/55R17	900 / 425	-40	1,710	FL693 M
440/50-17	880 / 440	45	1,550	Allground
440/50-17	880 / 440	0	1,640	Allground
33x15.5-16.5	840 / 395	35	1,530	SKD
