• Engine
  • Type: 3-cylinder diesel engine Kubota D1105
  • Output: 18.5 kW (25 HP)
  • Exhaust gas treatment / emission level: - / V
• Tyres
  • Standard tyres: 10.0/75-15.3 AS, ET0
  • Option I: 31x15.5-15 AS, ET-37
  • Option II: 27 x 10.5-15 SKD, ET0
• Electric system
  • Operating voltage: 12 V

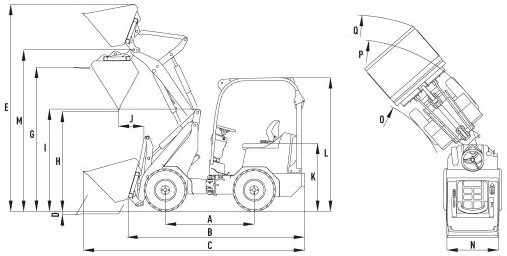

• Dimensions
  • (A) Wheelbase: 1,445 mm
  • (B) Chassis length: 2,850 mm
  • (C) Overall length with standard bucket: 3,550 mm
  • (D) Digging depth: 110 mm
  • (G) Loading height with pallet fork / option: 2,750 / 2,980 mm
  • (H) Max. dumping height / option: 2,170 / 2,400 mm
  • (I) Front end height / option: 1,680 / 1,805 mm
  • (J) Dumping width: 560 mm
  • (K) Seat height: 1,160 mm
  • (L) Protective roof height: 2,200 mm
  • (M) Max, bucket pivot point / option [mm]: 2,880 / 3,080 mm
  • (N) Overall width / option: 1,060 / 1,070 - 1,260 mm
  • (O) Inner turning radius: 820 mm
  • (P) Outer turning radius: 1,880 mm
  • (Q) Outer radius with standard bucket: 2,330 mm
• Drive
  • Traction hydraulics: Hydrostatic-automotive
  • Axles: Original Schäffer axles, 5 wheel nut rim
  • Speed: 0 - 20 kph
• Brakes and steering
  • Service braking system: Hydrostatic mechanical drum brake
  • Parking brake: Mechanical drum brake
  • Steering: Fully hydraulic articulated-swivel steering
• Tank capacity
  • Fuel: 23 l
  • Hydraulic oil: 30 l
• Working hydraulics
  • Delivery rate / option: 33 l/min / 42 l/min
  • Operat. pressure: 200 bar
• Weights
  • Operating weight protective roof incl. Original tyres, driver and standard bucket: 1,850 kg
  • Lifting capacity: 1,600 kg
  • Tipping load, straight, pallet fork acc. to ISO 8313: 789 - 941 kg
  • Tipping load, straight, bucket acc. to ISO 8313: 1,041 - 1,191 kg
  • Tipping load, articulated, pallet fork acc. to ISO 8313: 465 kg
  • Tipping load, articulated, bucket acc. to ISO 8313: 580 kg
  • Payload, pallet fork, even ground acc. to EN 474-3: 372 kg
  • Payload, pallet fork, uneven ground acc. to EN 474-3: 279 kg
  • Payload bucket acc. to ISO 14397-1: 290 kg
• Sounds and vibration
  • Sound pressure level LpA: 84 db(A)
  • Sound power level guaranteed LwA: 101 db(A)
  • Sound power level equivalent LwA: 98 db(A)
  • Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
  • Total body vibration acc. to ISO 8041: <0,5 m/s²

Dimensions
