Stock # 99999999

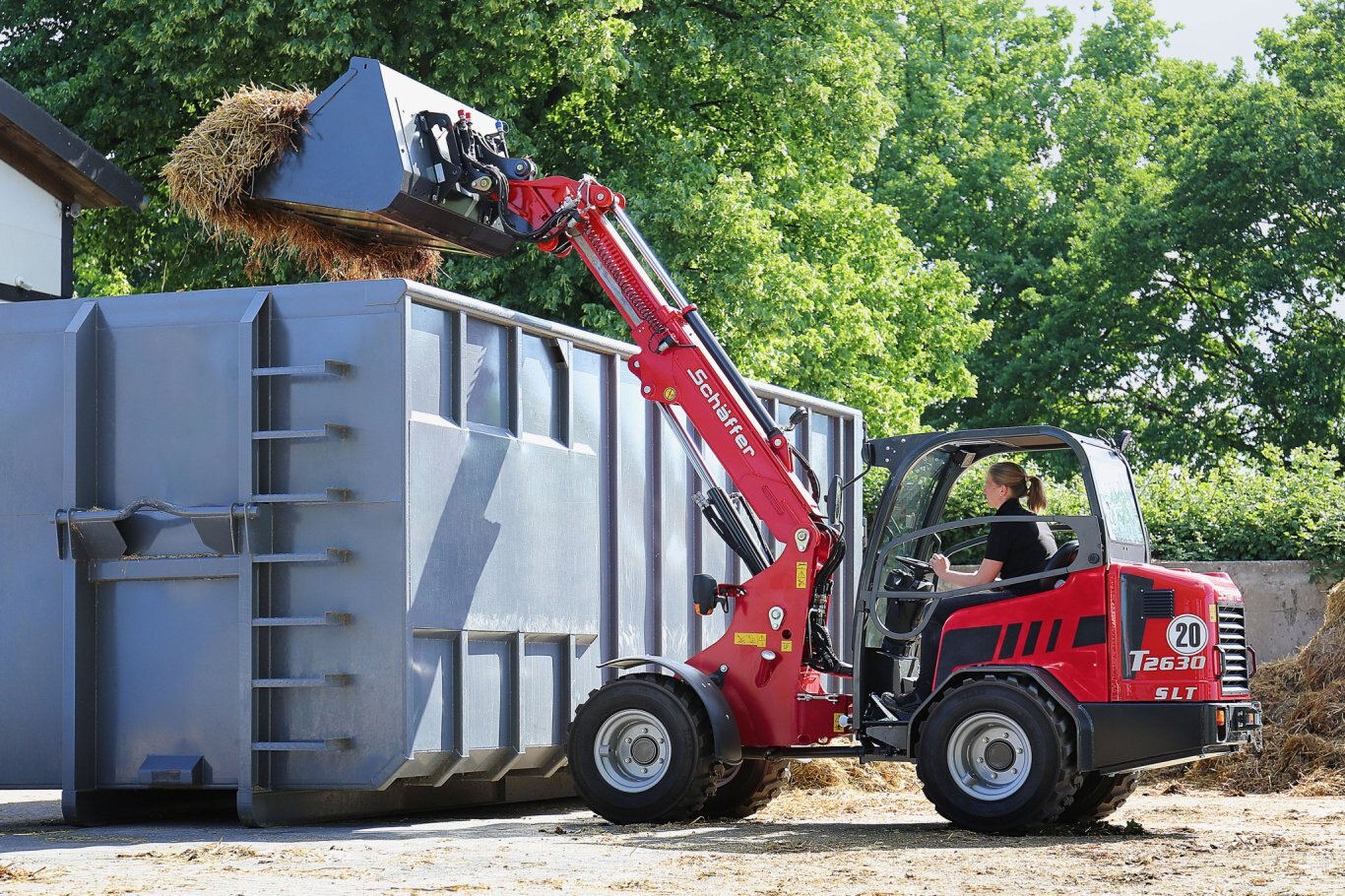

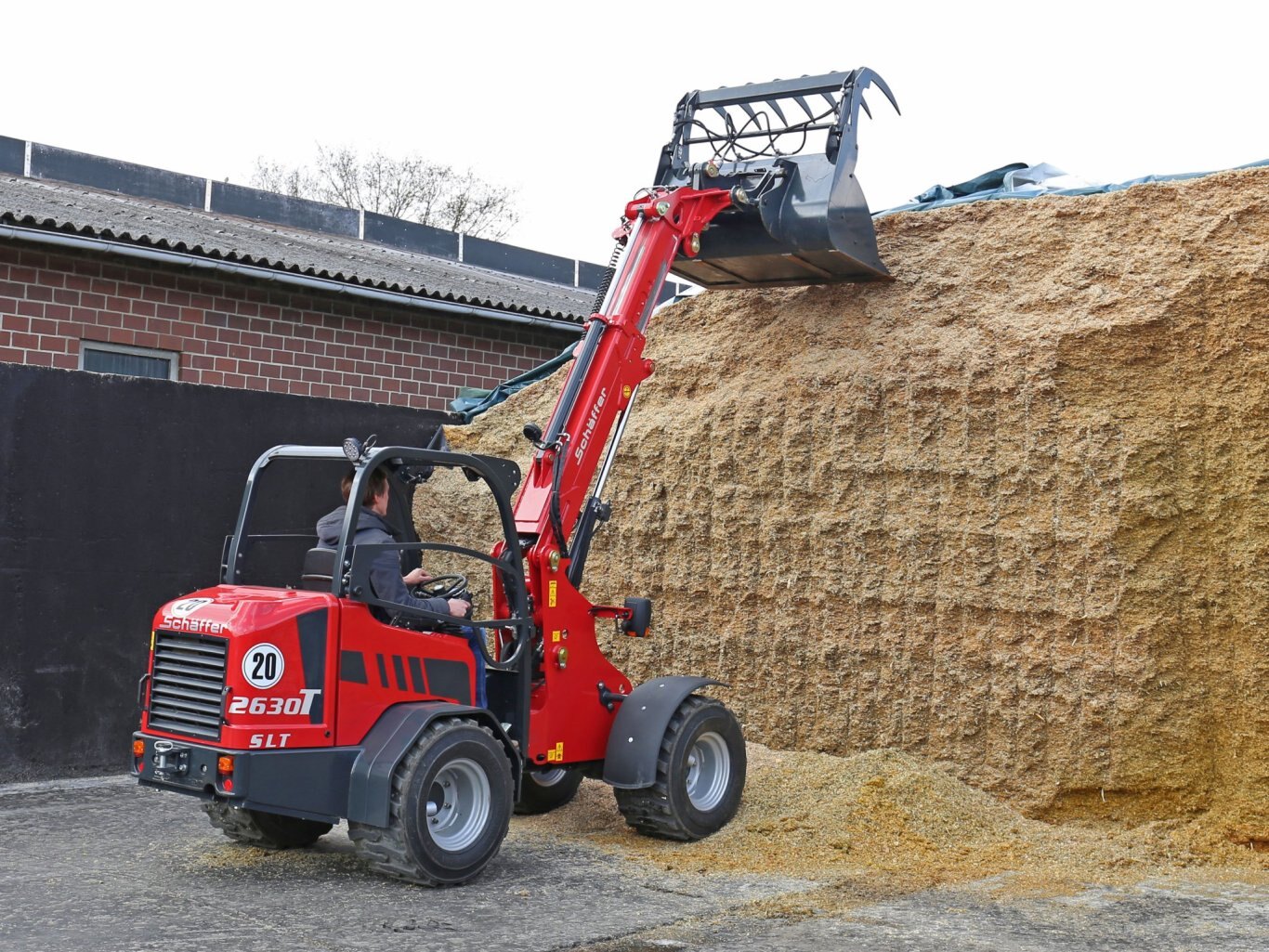

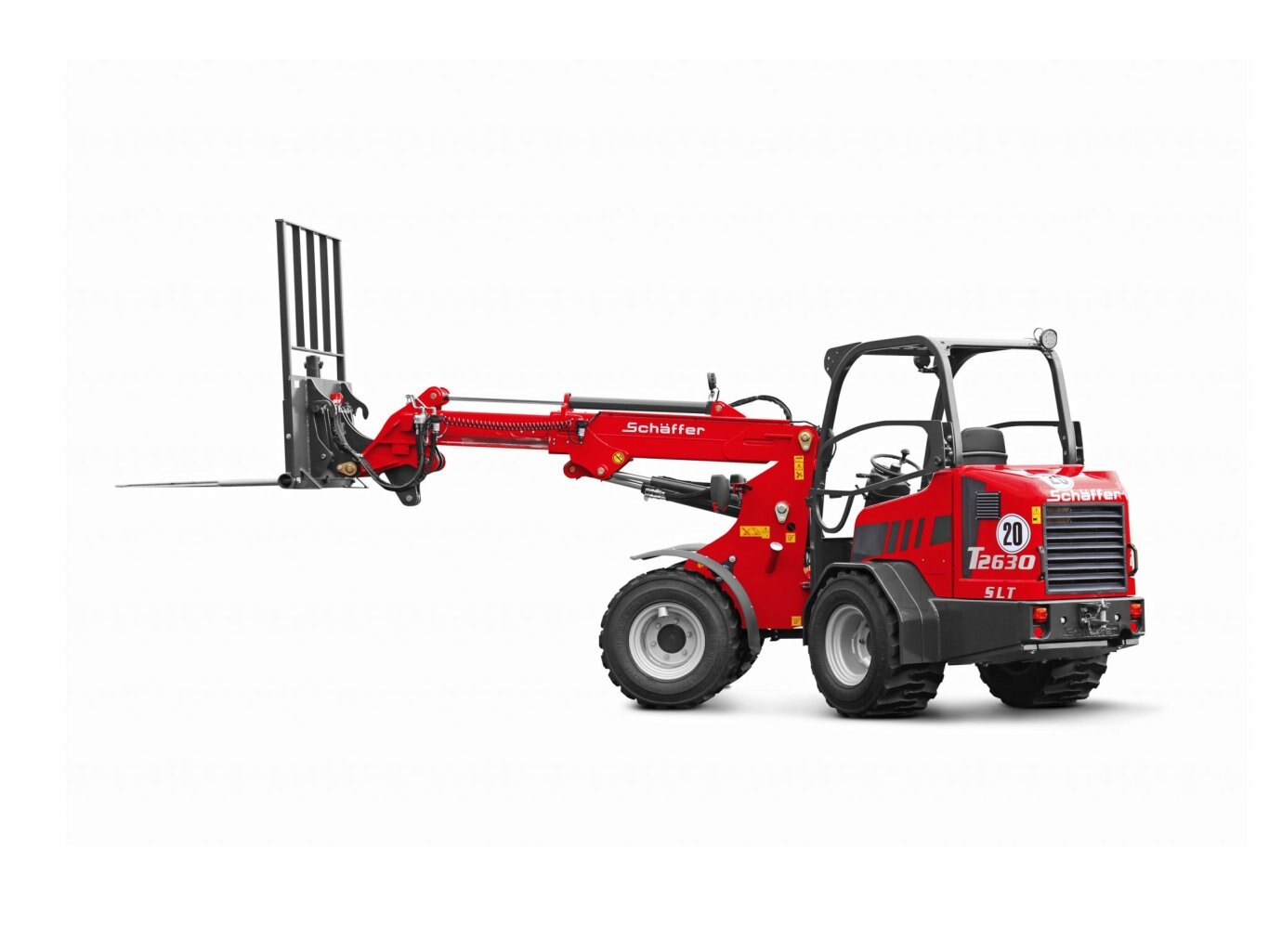

Schaffer Telescopic wheel loader 2630 T SLT

Name: Schaffer Telescopic wheel loader 2630 T SLT
Brand: Schaffer
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Specifications

Model

2630 T SLT

Category Name

Agriculture

Year

2026

Sale Type

New

Manufacturer

Schaffer

standard equipment

Special low construction design
3-cylinder diesel engine Kubota D1703-M-Di, 18.5 kW (25 HP)
Hydrostatic four wheel drive with cardan shaft and automotive control
High-pressure drive HD-plus
Tyres 31x15.5-15 AS, offset 0
HTF (High Traction Force)
SPT (Schäffer Power Transmission)
Hydraulic quick gear 20 km/h
Original Schäffer axles, wide design, 6 hole

Ferro-form sliding elements in the telescopic arm
Tool cylinder in the telescopic arm
Electric pressure relief of hydraulic couplings (on the steering tower and telescopic arm)
Combined oil cooler
Multiple disk brake, maintenance free; service and parking brake
Maintenance free articulated pendulum joint
Restraining system for protection roof
LED working headlights: 2 x front, 1 x rear
Z-bar boom with parallel lift

Mechanically operated additional controller
Working hydraulics: 38 l/min
Adjustable steering column
Hour meter, rev, counter, fuel control lamp and temperature indicator
Rear weight end plate and towing hitch
Counter weight 110 kg mounted under rear chassis
Wide chassis with wider fender
Driver-on-board switch
Quick-change frame SWH with hydraulic tool lock

technical data

Engine
- Type: 3-cylinder diesel engine Kubota D1703-M-Di
- Output: 18.5 kW (25 HP)
- Exhaust gas treatment / emission level: - / V
Tyres
- Standard tyres: 31x15.5-15 AS, ET0
Electric system
- Operating voltage: 12 V
Dimensions
- (A) Wheelbase: 1,900 mm
- (B) Chassis length: 3,850 mm
- (C) Overall length with standard bucket: 4,600 mm
- (D) Digging depth: 90 mm
- (E) Reach: 1,570 mm
- (F) Swivelling point, telescopic arm retracted: 3,720 mm
- (G) Loading height with pallet forks: 3,470 mm
- (H) Max. dumping height: 3,010 mm
- (I) Front end height: 1,580 mm
- (J) Dumping width: 820 mm
- (K) Seat height: 955 mm
- (L) Protective roof height: 1,980 mm
- (L) Cab height: 1,980 mm
- (M) Max. bucket pivot point: 3,720 mm
- (N) Overall width / option: 1,500 / 1,410 - 1,590 mm
- (O) Inner turning radius: 1,240 mm
- (P) Outer turning radius: 2,740 mm
- (Q) Outer radius with standard bucket: 3,040 mm
Drive
- Traction hydraulics: Hydrostatic-automotive
- Speed: 0 - 20 kph in 2 gear switchable
- Axles / option: Original Schäffer axles, 6 wheel nut rim / automatic limited-slip differential
Brakes and steering
- Service braking system: Combined brake hydrostatic and multi-disc brake
- Parking brake: Multi-disc brake running in oilt bath
- Steering: Fully hydraulic articulated-swivel steering
Tank capacity
- Fuel: 40 l
- Hydraulic oil: 30 l
Working hydraulics
- Delivery rate: 38 l/min
- Operat. pressure: 220 bar
Weights
- Operating weight protective roof incl. Original tyres, driver and standard bucket: 2,750 kg
- Operating weight cabin incl. Original tyres, driver and standard bucket: 2,815 kg
- Lifting capacity: 1,600 kg
- Tipping load, straight, pallet fork acc. to ISO 8313: 1,330 kg
Sounds and vibration
- Sound pressure level LpA: 82 db(A)
- Sound power level guaranteed LwA: 101 db(A)
- Sound power level equivalent LwA: 101 db(A)
- Hand/arm vibration acc. to ISO 8041: < 2,5 m/s²
- Total body vibration acc. to ISO 8041: < 0,5 m/s²

Dimensions

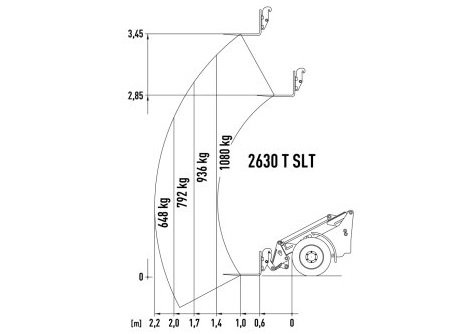

Payload chart 2630 T SLT

Using forks on stable underground (according EN 474-3)

tyres loader

Dimension	Diameter (mm) / Width (mm)	Rim offset	Loader width (mm)	Tread	Tread options
31x15.5-15	770 / 400	45	1,410	AS	SKD
31x15.5-15	770 / 400	0	1,520	AS	SKD
31x15.5-15	770 / 400	-45	1,590	AS	SKD
