• Engine
  • Type: 3-cylinder diesel engine Kubota D1803-CR-T
  • Output: 37 kW (50 HP)
  • Exhaust gas treatment / emission level: DOC, DPF / V

• Tyres
  • Standard tyres: 15.0/55-17 AS, ET+85
  • Option I: 425/55R17
  • Option II: 440/50-17
  • Option III: 33x15.5-16.5 SKD, ET+35

• Electric system
  • Operating voltage: 12 V

• Dimensions
  • (A) Wheelbase: 1,920 mm
  • (B) Chassis length: 4,070 mm
  • (C) Overall length with standard bucket: 4,835 mm
  • (D) Digging depth: 150 mm
  • (E) Reach: 1,980 mm
  • (F) Swivelling point, telescopic arm retracted: 3,180 mm
  • (G) Loading height with pallet forks: 3,580 mm
  • (H) Max. dumping height: 3,010 mm
  • (I) Front end height: 1,600 mm
  • (J) Dumping width: 890 mm
  • (K) Seat height: 1,080 mm
  • (L) Protective roof height: from 2,100 mm
  • (M) Max. bucket pivot point: 3,850 mm
  • (N) Overall width / option: 1,420 / 1,510 - 1,730 mm
  • (O) Inner turning radius: 1,290 mm
  • (P) Outer turning radius: 2,710 mm
  • (Q) Outer radius with standard bucket: 3,060 mm

• Drive
  • Traction hydraulics: Hydrostatic-automotive
  • Speed / option: 0 - 20 kph in 2 gears switchable under load / 0 - 30 kph
  • Axles / option: Original Schäffer axles, 6-hole rim; Option: automatic slipcontrol differential

• Brakes and steering
  • Service braking system: Combined brake hydrostatic and multi-disc brake
  • Parking brake: Multi-disc brake running in oil bath
  • Steering: Fully hydraulic articulated pendulum steering
• Tank capacity
  • Fuel: 55 l
  • Hydraulic oil: 48 l

• • Delivery rate: 51 l/min
  • Operat. pressure: 220 bar
• Weights
  • Operating weight protective roof incl. Original tyres, driver and standard bucket: 3.700 kg
  • Lifting capacity: 1.950 kg
  • Tipping load, straight, pallet fork acc. to ISO 14397: 1.710 kg
• Sounds and vibration
  • Sound pressure level LpA: 84 db(A)
  • Sound power level guaranteed LwA: 101 db(A)
  • Sound power level equivalent LwA: 101 db(A)
  • Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
  • Total body vibration acc. to ISO 8041: <0,5 m/s²

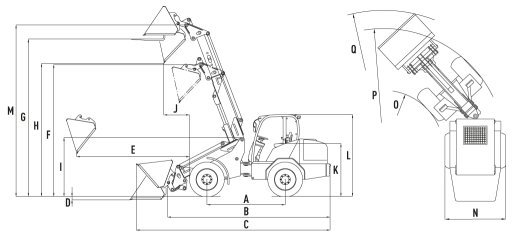

Dimensions telescopic wheel loaders

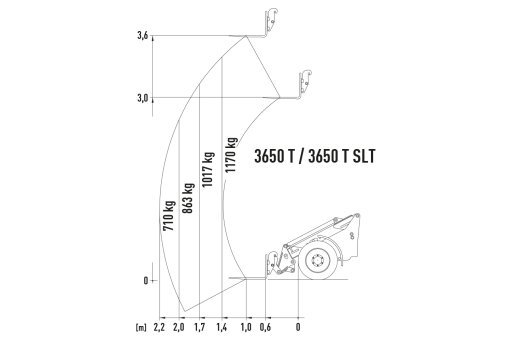

Payload chart 3650 T / 3650 T SLT

Using forks on stable underground (according EN 474-3)

• Special low construction design
• 3-cylinder diesel engine Kubota D1803-CR-T, 37 kW (50 HP)
• DOC and DPF for compliance with Stage V emissions standards
• Hydrostatic four wheel drive with automotive control
• High-pressure drive HD-plus
• Tyres 15.0/55-17 AS, offset +85
• HTF (High Traction Force)
• SPT (Schäffer Power Transmission)
• ECO Mode
• Hydraulic quick gear 20 km/h switchable under load
• Original Schäffer axles, wide design, 6 hole
• Ferro-form sliding elements in the telescopic arm
• Tool cylinder in the telescopic arm
• Electric pressure relief of hydraulic couplings (on the steering tower and telescopic arm)
• Combined oil cooler
• Multiple disk brake, maintenance free; service and parking brake
• Maintenance free articulated pendulum joint
• Restraining system for protection roof
• LED working headlights: 2 x front, 1 x rear
• Z-bar boom with parallel lift
• Working hydraulics: 51 l/min
• Driver-on-board switch
• Adjustable steering column
• Hour meter, rev counter, fuel control lamp and temperature indicator
• Rear weight end plate and towing hitch
• Counter weight 110 kg mounted under rear chassis
• Wide chassis
• Headstock type wheel loader with hydraulic tool lock
