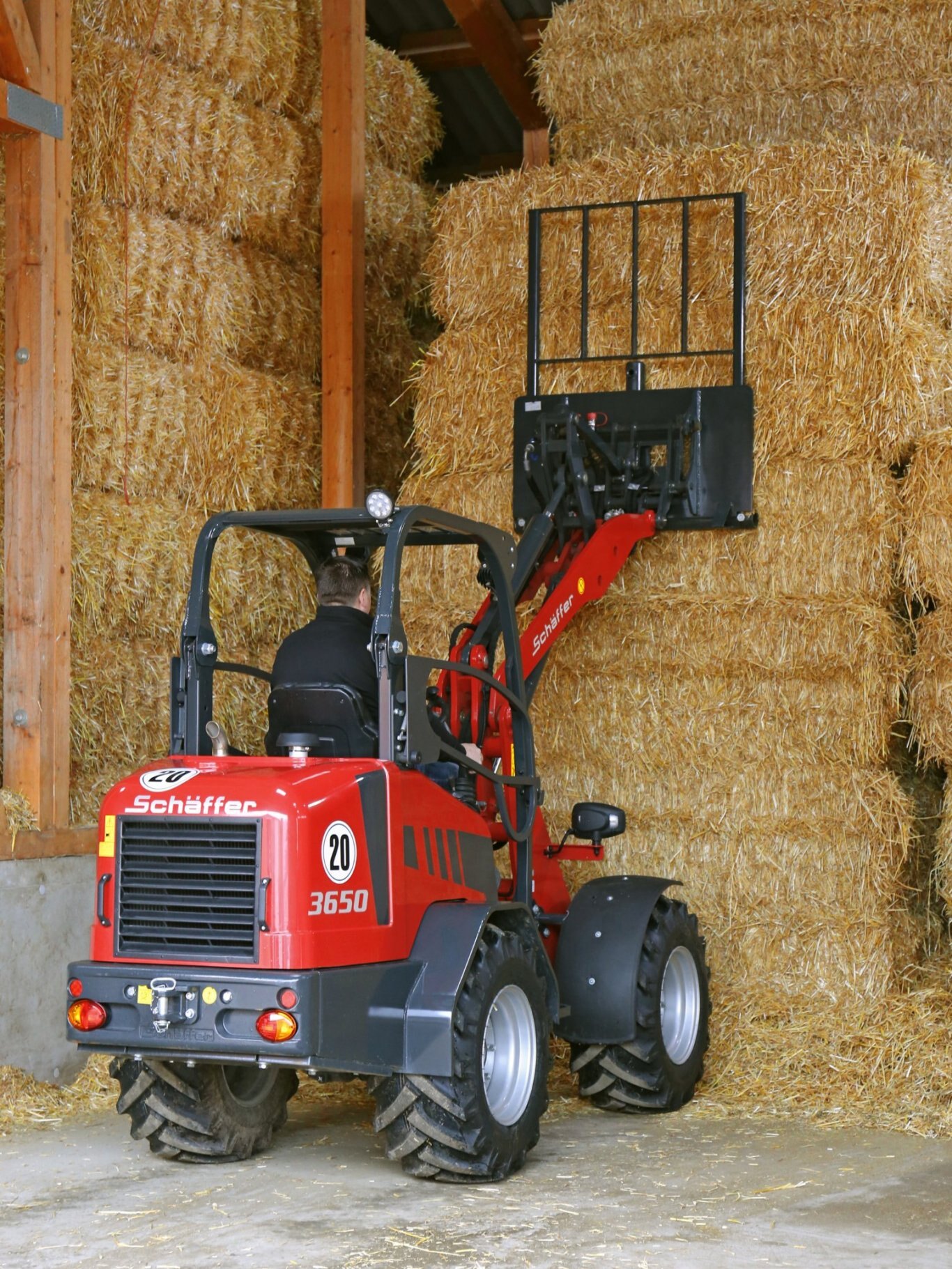

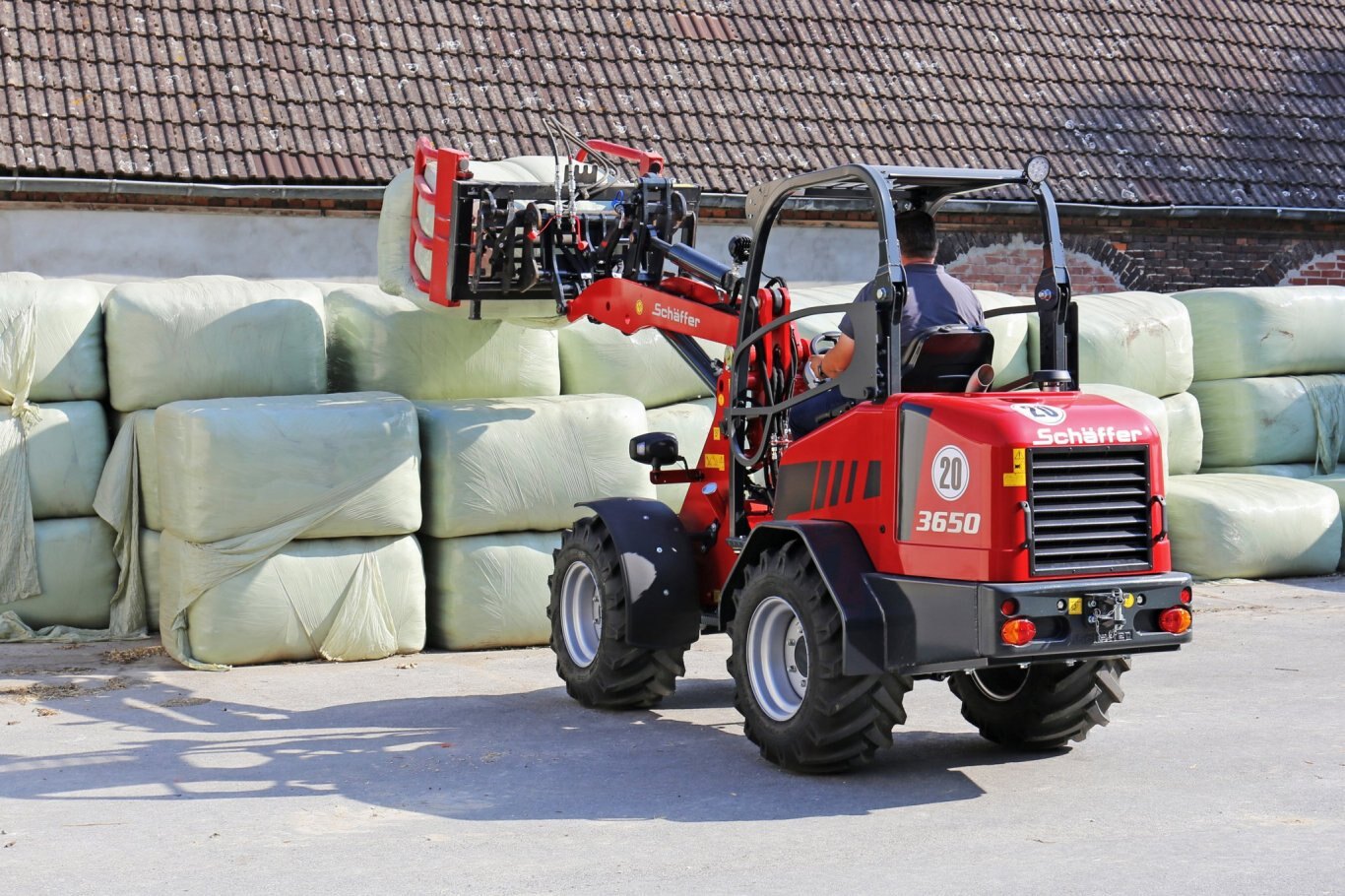

Schaffer 3650

Engine
Type: 3-cylinder diesel engine Kubota D1803-CR(-T)
Capacity / option: 28 kW (38 HP) / 37 kW (50 HP)
Exhaust gas treatment / emission level: DOC, DPF / V
Tyres
Standard tyres: 10.0/75-15.3 AS, ET-5
Option I: 31x15.5-15 AS, ET-70
Option II: 15.0/55-17 AS, ET+45
Option III: 11.5/80-15.3
Electric system
Operating voltage: 12 V
Dimensions
(A) Wheelbase: 1,800 mm
(B) Chassis length: 3,485 mm
(C) Overall length with standard bucket: 4,185 mm
(D) Digging depth: 90 mm
(G) Loading height with pallet fork / option: 2,810 / 3,060 mm
(H) Max. dumping height / option: 2,140 / 2,390 mm
(I) Front end height / option: 1,690 / 1,790 mm
(J) Dumping width: 470 mm
(K) Seat height: 1,226 mm
(L) Protective roof height: 2,230 mm
(L) Cab height: 2,150 mm
(M) Swivelling point, telescopic arm retracted / option: 2,950 / 3,200 mm
(N) Overall width / option: 1,100 / 1,200 - 1,570 mm
(O) Inner turning radius: 1,230 mm
(P) Outer turning radius: 2,330 mm
(Q) Outer radius with standard bucket: 3,020 mm

Dimensions

Notice
All specifications are subject to change. Optional equipment and tyre dimensions may vary operating weight and tipping loads. The Euro type headstock and foreign attachments may have a negative impact on tipping load and parallel lift. Images may contain products or equipment components which are not mentioned or cannot be obtained as a standard. Maximum values for tipping loads and payloads can only be reached with additional ballasting.

Drive
Traction hydraulics: Hydrostatic-automotive
Speed / option: 0 - 20 kph in 2 gear switchable / 0 - 30 kph (37 kW engine required)
Axles / option: Original Schäffer axles, 6 wheel nut rim, automatic limited-slip differential
Brakes and steering
Service braking system: Combined brake hydrostatic and multi-disc brake
Parking brake: Multi-disc brake running in oil bath
Steering: Fully hydraulic articulated-swivel steering
Fill quantities
Fuel: 50 l
Hydraulic oil: 48 l

Working hydraulics
Delivery rate / option: 46 l/min / 51 l/min / 51 + 46 l/min / 81 l/min
Operat. pressure: 200 bar
Weights
Operating weight protective roofincl. Original tyres, driver and standard bucket: 2,700 kg
Operating weight cabinincl. Original tyres, driver and standard bucket: 2,850 kg
Lifting capacity: 2,000 kg
Tipping load, straight, pallet forkacc. to ISO 8313: 1,267 - 1,580 kg
Tipping load, straight, bucketacc. to ISO 8313: 1,523 - 1,845 kg
Tipping load, articulated, pallet forkacc. to ISO 8313: 750 kg
Tipping load, articulated, bucketacc. to ISO 8313: 950 kg
Payload, pallet fork, even groundacc. to EN 474-3: 600 kg
Payload, pallet fork, uneven groundacc. to EN 474-3: 450 kg
Payload bucketacc. to EN 14397-1: 475 kg
Sounds and vibration
Sound pressure level LpA: 85 db(A)
Sound power level guaranteed LwA: 101 db(A)
Sound power level equivalent LwA: 100 db(A)
Hand/arm vibrationacc. to ISO 8041: <2,5 m/s²
Total body vibrationacc. to ISO 8041: <0,5 m/s²
