ID # 25491241

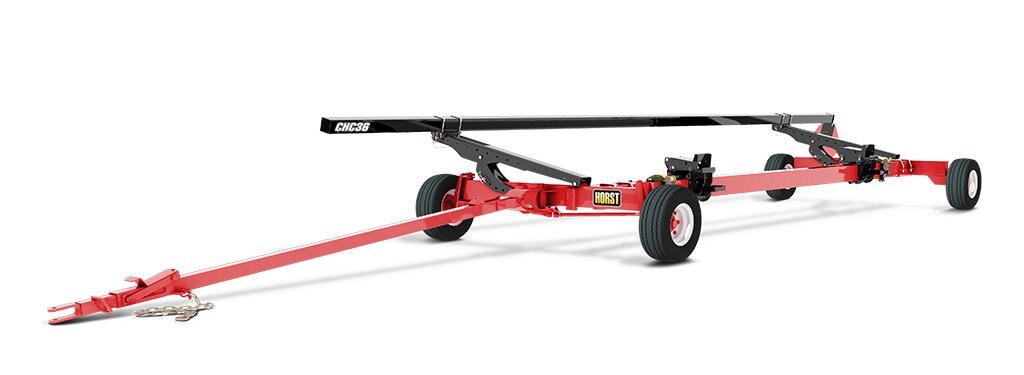

Horst Wagons CHC36

  • Horst Wagons CHC36
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Regular Duty 2 Wheel Steer

  • Tapered roller bearings on king pins for absolute no sway trailing
  • Includes 2 tool free configurable standard pads
  • 2 Ratchet straps to secure load
  • Bridged bottom rail on CHC36
  • Safety chain
  • Length adjustable hitch with auto lock for simple hook up
Specifications
Model
CHC36
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Horst
Wheelbase
24'
Safety Chain
Standard
Shoes & Pads
2 Shoes + 2 small Pads Included
Approx. Weight
2,590 lbs. (less rims and tires)
Top Rail Length
36'
Maximum Head Size
35'
Tongue Length (Adjustable)
11' 3" to 12' 9"
Maximum Rated Gross Capacity
10,000 lbs.
options
CHCLPO Upgrade option to Universal Pad (upgrade includes both pads)(in lieu of standard pad at time of manufacture) (in lieu of standard pad at time of manufacture)
LK24 Road Signal Light Kit (24' wheelbase)
HBAFK Honey Bee AirFLEX® Pad Adapter Kit
SB Single Spring Tongue Balancer
SBD Double Spring Tongue Balancer
rim & tire sizes
Tire Size Description GVWR Rim Size
26 x 12 12 ply 10,000 lbs. 12 x 10.5 x 6
225/75 R15 D Range highway trailer tire 10,000 lbs. 15 x 6 x 6
235/85 R16 F Range highway trailer tire 10,000 lbs. 16 x 8 x 6
11L x 15 F Range highway service tire 10,000 lbs. 15 x 8 x 6 HD
features
Horst Wagons CHC36 Adjustable Rail
The adjustable top rail ensures our wagons can fit most sizes and models of combine heads.
Horst Wagons CHC36 Ratchet Straps
These heavy duty ratchet straps are re-positionable to match the best possible strapping location for your head. Because they are free floating they are a snap to release.
Horst Wagons CHC36 Road Flex Suspension (Patented)
Contour Cross Country builds on the proven Contour 4 wheel steer platform by adding 4 wheel independent Road Flex suspension. This patented innovation not only smooths out bumps, it gives added clearance when turning adding even more protection for your head.
Horst Wagons CHC36 Tapered Roller Bearings
Roller bearings are used in your main pivot points keeping them tight, ensuring no trailer sway and long lasting use.
Horst Wagons CHC36 Fenders
Add even more protection for your head and tow vehicle with these optional fenders. These corrosion and dent resistant fenders prevent dirt and stones being thrown at your head and tow vehicle.

Horst Wagons CHC36 Reinforced Bottom Rail
The Reinforced bottom rail comes standard on 24ft & 30ft wheelbase standard on CHC36, CHCF, CHCFE & CHCFRF
A heavy duty bottom rail option is available for select models.
Horst Wagons CHC36 Quick Release
The quick release header mount makes repositioning the header mount easy. Simply lower the over-centre locking handles, reposition the mount and relock the mount.
Horst Wagons CHC36 Brakes
Contour Cross Country features standard four electric drum brakes, to give you more control and confidence when transporting your head from field to field. Contour CHCFE come standard with 2 rear brakes.

Horst Wagons CHC36 Improved Steering
Horst Header Wagons feature an improved steering system that provides tighter steering when following the tow vehicle and prevents bent tongues.
Horst Wagons CHC36 Wheels
Contour Cross Country comes standard with Highway rated tires to make sure you are not trailing behind.

Horst Wagons CHC36 Road Signal Light Kit
Make road travel safer by adding the road signal light kit which includes brake, turning and hazard lights.
The Contour Cross Country models come standard equipped with rear signal and side running lights on fenders and rails.
Horst Wagons CHC36 Tongue
Adjustable Hitch with auto lock for simple hookup.
Double spring balancer is standard equipment on all models except CHC series.
Single or double spring balancer option available for CHC series.
