• Engine
  • Type: 3-cylinder diesel engine Kubota D1105
  • Output: 18.5 kW (25 HP)
  • Exhaust gas treatment / emission level: - / V
• Tyres
  • Standard tyres: 7.00-12 AS
  • Option I: 27x8.50-15
  • Option II: 27x10.5-15
  • Option III: 26x12.00-12
• Electric system
  • Operating voltage: 12 V
• Dimensions
  • (A) Wheelbase: 1,440 mm
  • (B) Chassis length: 2,850 mm
  • (C) Overall length with standard bucket: 3,560 mm
  • (D) Digging depth: 110 mm
  • (G) Loading height with pallet fork / option: 2,560 / 2,920 mm
  • (H) Max. dumping height / option: 2,100 / 2,265 mm
  • (I) Front end height: 1,600 / 1,725 mm
  • (J) Dumping width: 620 mm
  • (K) Seat height: 1,055 mm
  • (L) Protective roof height: 2,100 mm
  • (M) Max, bucket pivot point / option [mm]: 2,800 / 3,060 mm
  • (N) Overall width / option: 905 (1,065 turned) / 940 - 1,250 mm
  • (O) Inner turning radius: 820 mm
  • (P) Outer turning radius: 1,715 mm
  • (Q) Outer radius with standard bucket: 2,105 mm
• Drive
  • Traction hydraulics: Hydrostatic-automotiv

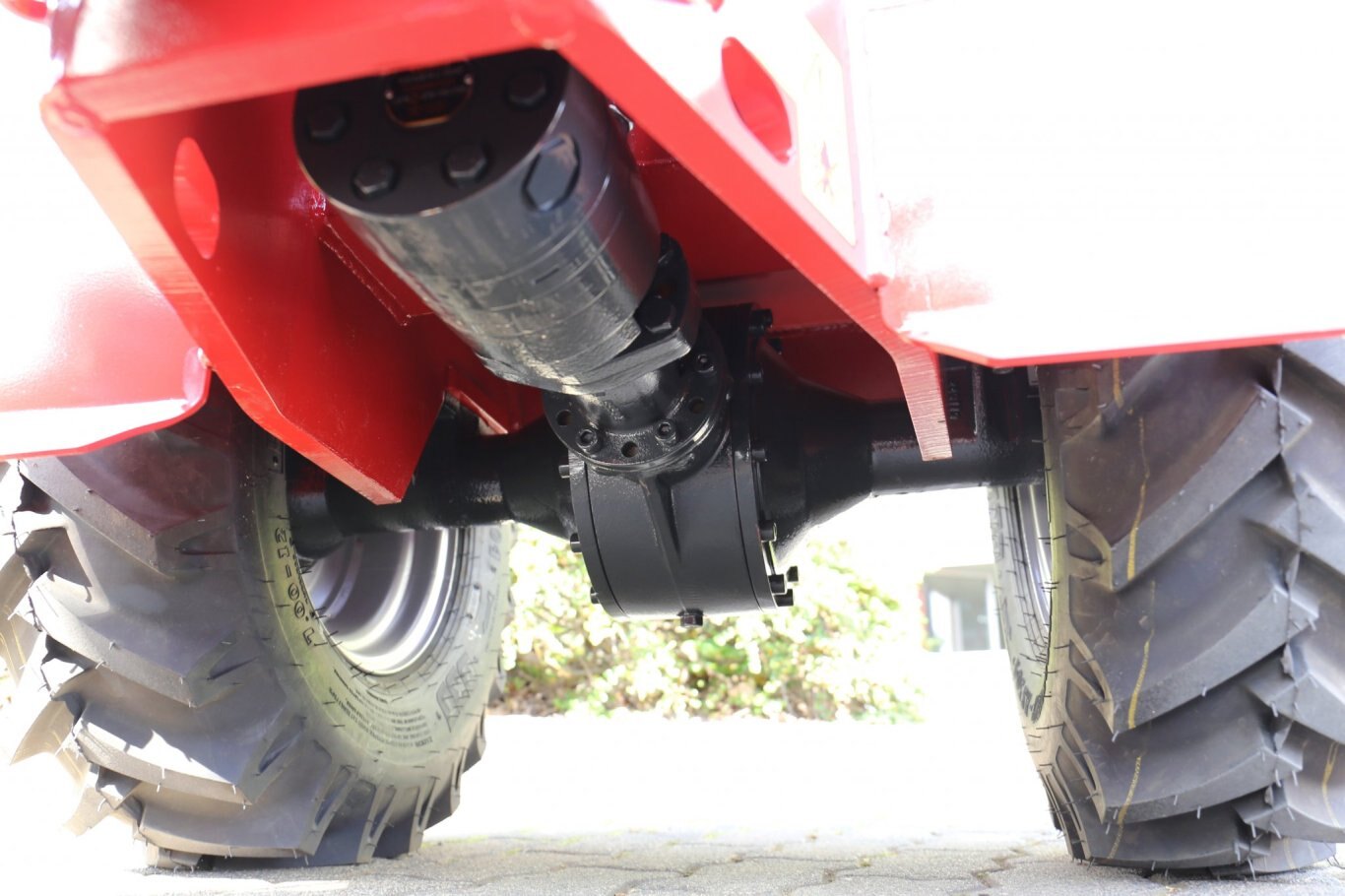

  • Axles: Original Schäffer axles, 5 wheel nut rim
  • Speed: 0 - 15 kph
• Brakes and steering
  • Service braking system: Hydrostatic mechanical drum brake
  • Parking brake: Mechanical drum brake

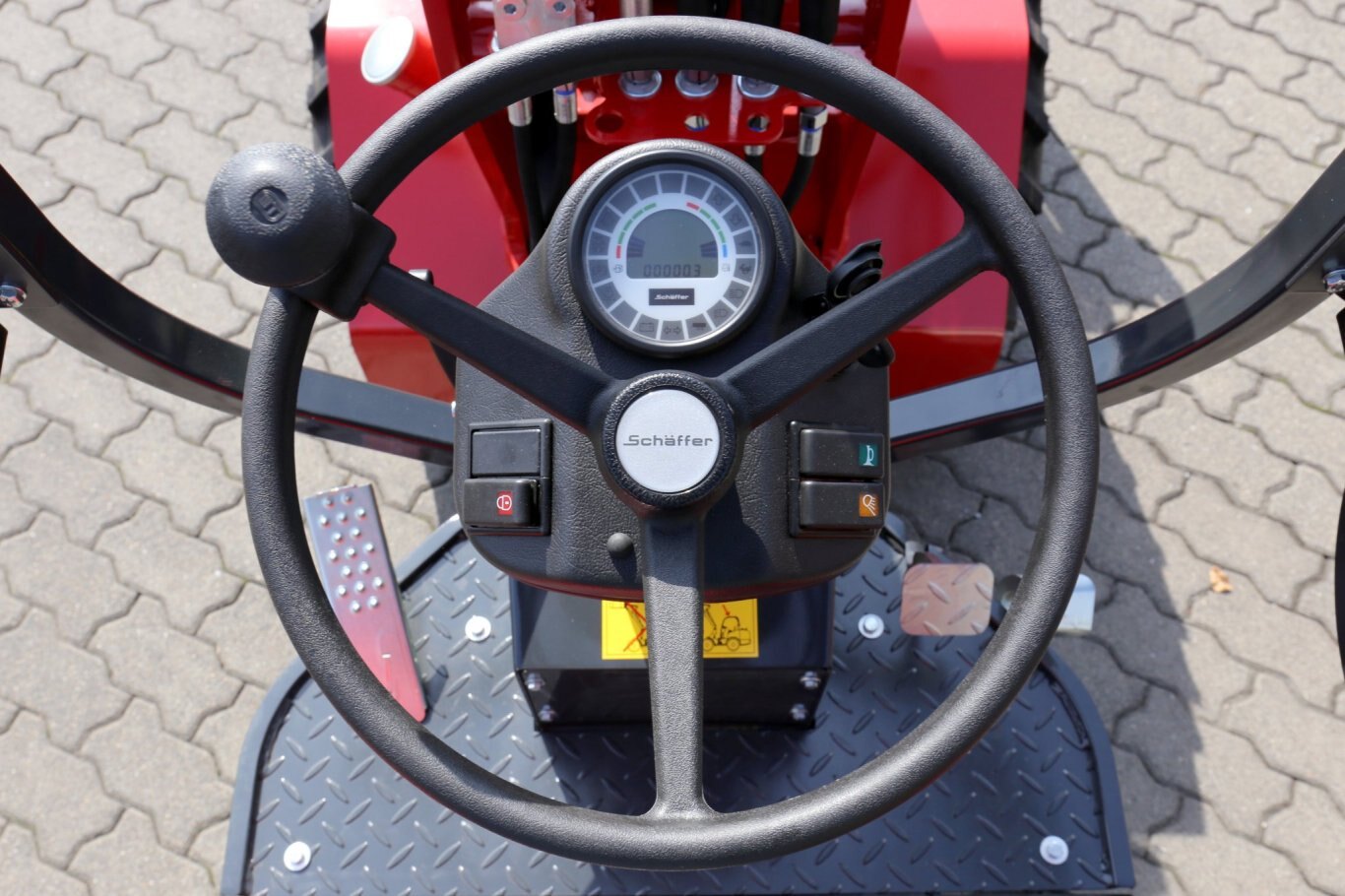

  • Steering: Fully hydraulic articulated-swivel steering
• Tank capacity
  • Fuel: 23 l
  • Hydraulic oil: 30 l
• Working hydraulics
  • Delivery rate / option: 33 l/min / 42 l/min
  • Operat. pressure: 200 bar
• Weights
  • Operating weight protective roof incl. Original tyres, driver and standard bucket: 1,760 kg
  • Lifting capacity: 1,500 kg
  • Tipping load, straight, pallet fork acc. to ISO 8313: 675 - 841 kg
  • Tipping load, straight, bucket acc. to ISO 8313: 832 - 976 kg
  • Tipping load, articulated, pallet fork acc. to ISO 8313: 375 kg
  • Tipping load, articulated, bucket acc. to ISO 8313: 505 kg
  • Payload, pallet fork, even ground acc. to EN 474-3: 300 kg
  • Payload, pallet fork, uneven ground acc. to EN 474-3: 225 kg
  • Payload bucket acc. to ISO 14397-1: 252,5 kg
• Sounds and vibration
  • Sound pressure level LpA: 83 db(A)
  • Sound power level guaranteed LwA: 101 db(A)
  • Sound power level equivalent LwA: 98 db(A)
  • Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
  • Total body vibration acc. to ISO 8041: <0,5 m/s²
• Transport of materials
  • Specific material weight: 1,6 t/m³
  • Bucket volume acc. to ISO 8041: 0,2 m³
  • Recommended bucket width: 0,9 m
