Stock # 8

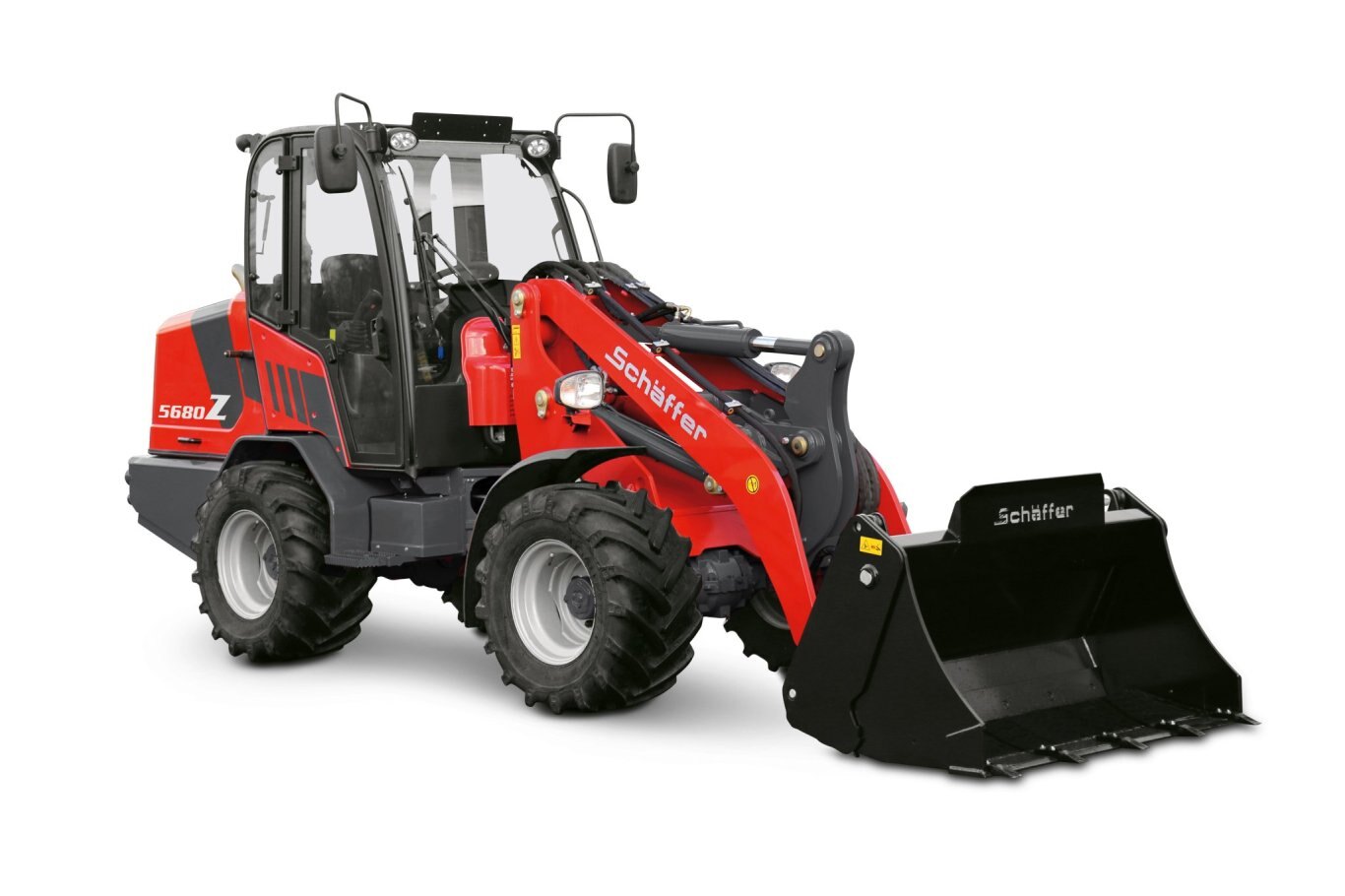

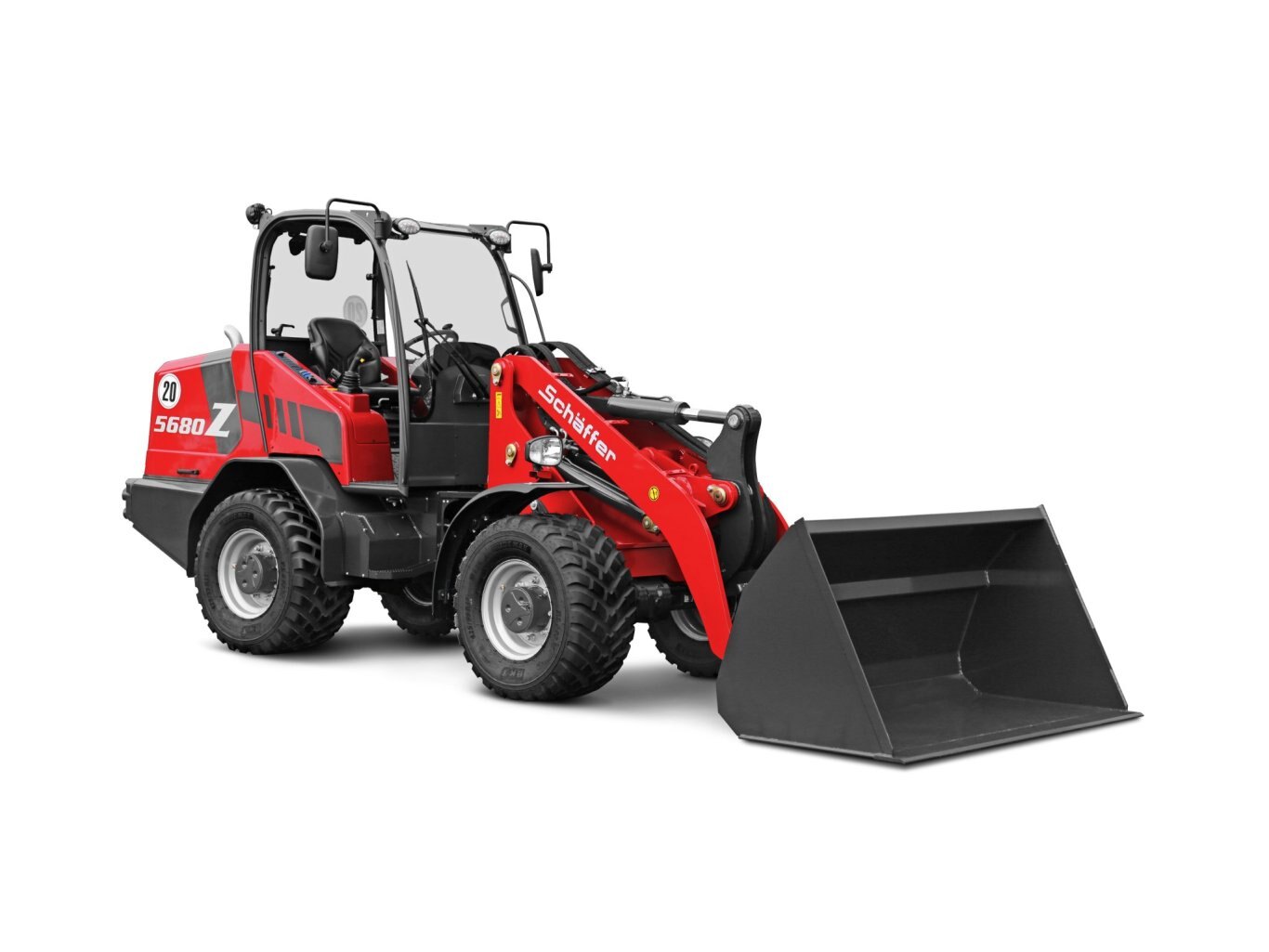

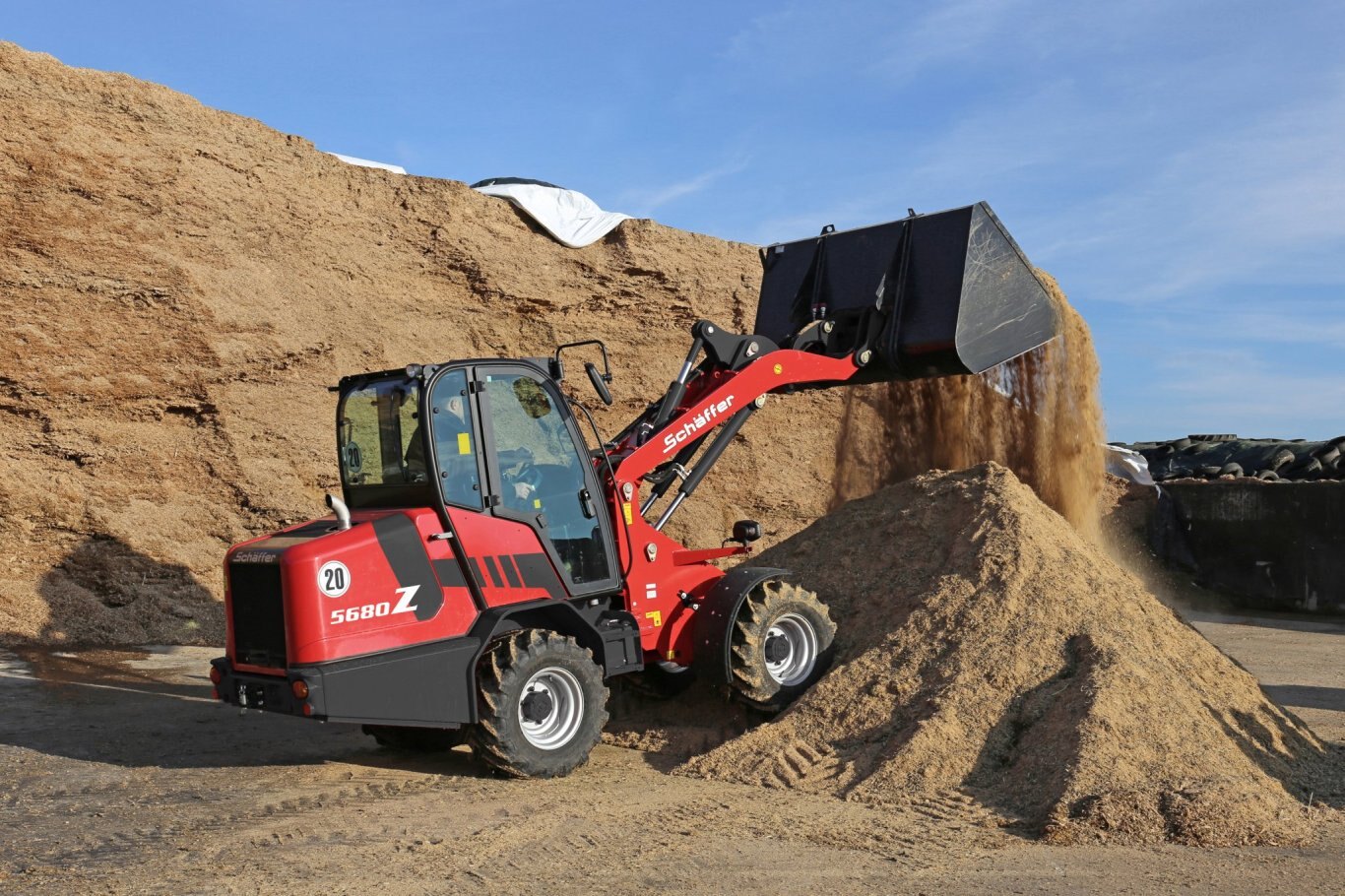

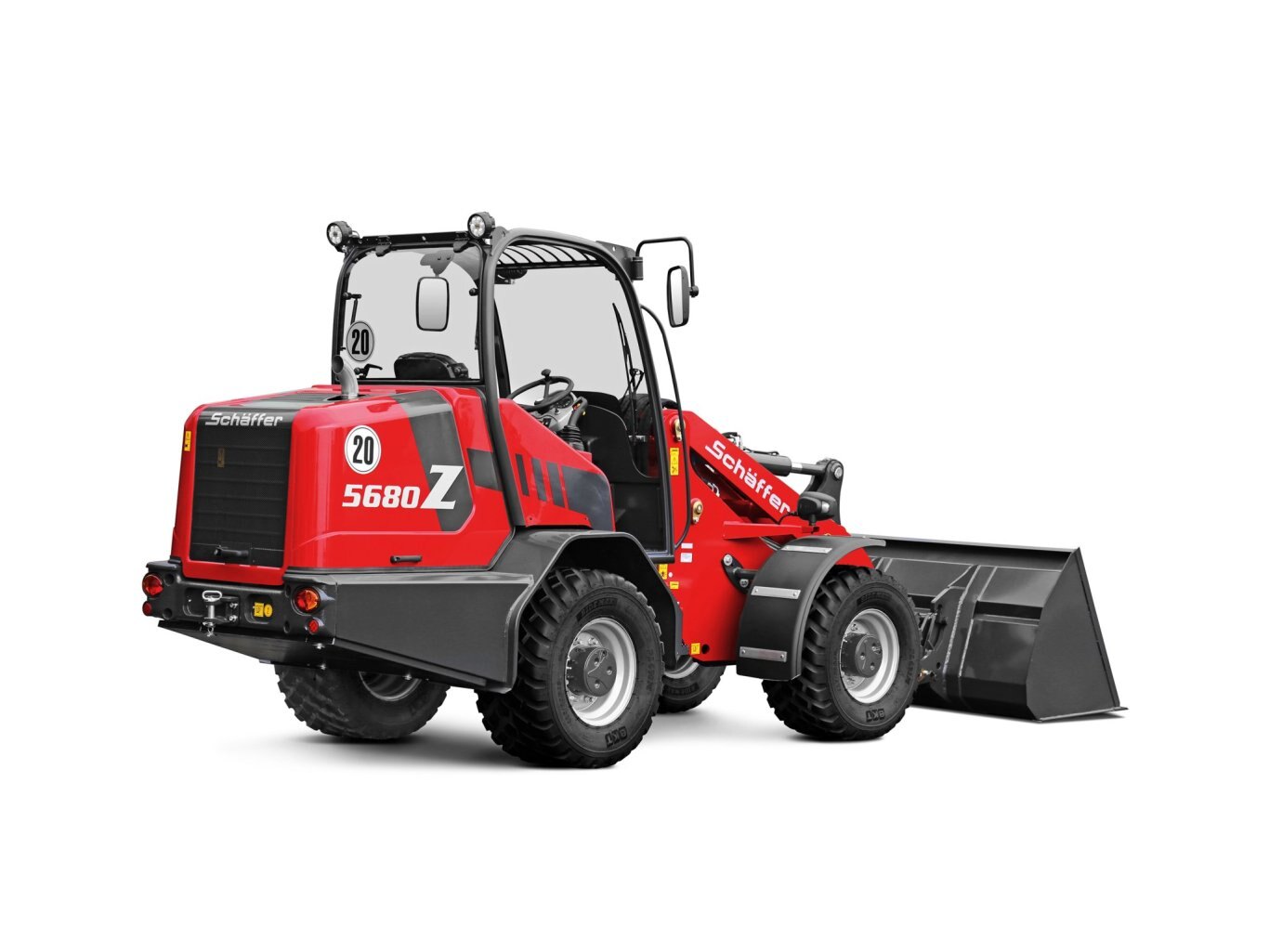

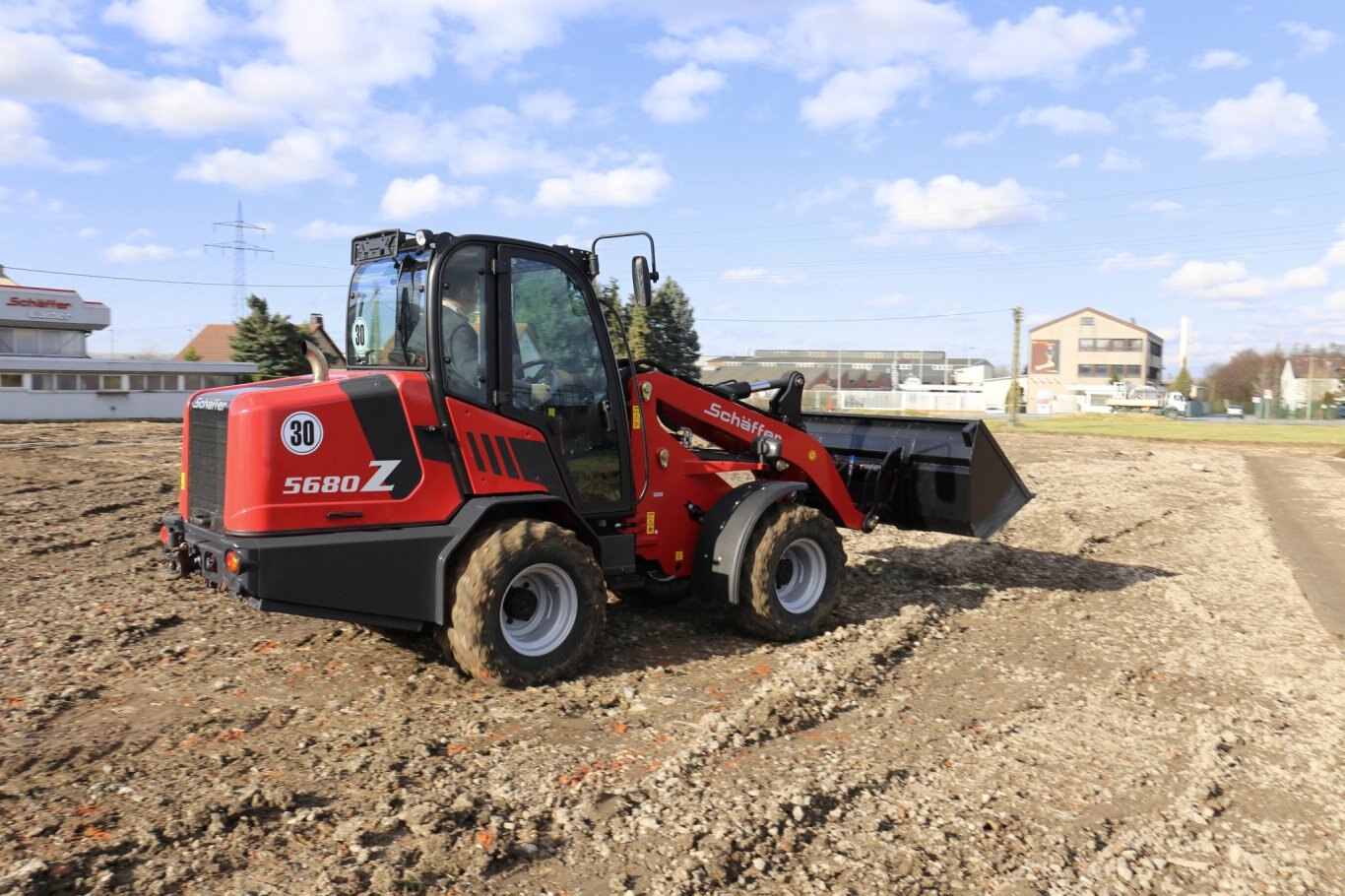

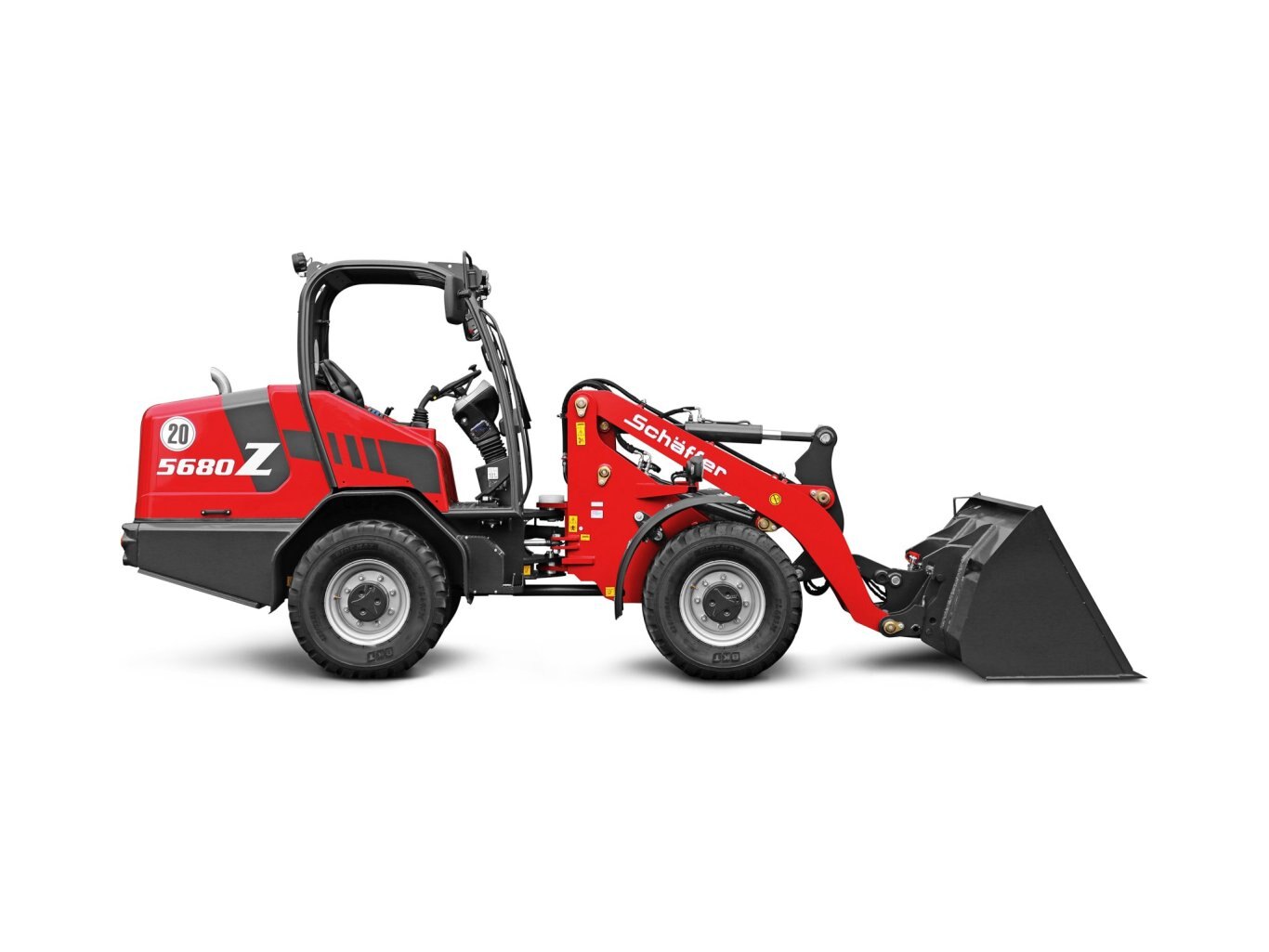

Schaffer Wheel loader 5680 Z

Name: Schaffer Wheel loader 5680 Z
Brand: Schaffer
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Specifications

Model

5680 Z

Category Name

Agriculture

Year

2026

Sale Type

New

Manufacturer

Schaffer

standard equipment

4-cylinder diesel engine Deutz TD 2.9, 55 kW (75 HP)
DOC and DPF for compliance with Stage V emissions standards
Hydrostatic four wheel drive with automotive control
High-pressure drive HD-plus
Tyres 15.5/60-18 AT-621, offset +40
HTF (High Traction Force)
SPT (Schäffer Power Transmission)
ECO Mode
Hydraulic quick gear 20 km/h switchable under load
HD planetary axles with self-locking differentials, 8 hole

Rear pendulum axle
Electric pressure relief of hydraulic couplings
Combined oil cooler
Hydraulic fan drive
Multiple disk brake, maintenance free; service and parking brake
Maintenance free articulation joint
LED working headlights: 2 x front, 1 x rear
Lighting system without ABE (General approval certificate) according to ordinance StVZO
Z-bar boom with parallel lift
Additional control device electrically switchable on joystick

Working hydraulics standard / options: 64 / 76 (stronger pump) / 115 l/min (MHF)
Adjustable steering column
Hour meter, rev, counter, fuel control lamp and temperature indicator
Armrest right hand side
Rear weight end plate and towing hitch
Main battery switch
2-stage air cleaner with highly efficient pre-cleaner system
Driver-on-board switch
Headstock type wheel loader with hydraulic tool lock

technical data

Engine
- Type: 4-cylinder diesel engine Deutz TD 2.9
- Capacity / option: 55 kW (75 PS)
- Exhaust gas treatment / emission level: DOC, DPF / V
Tyres
- Standard tyres: 15.5/60-18 AT-621, ET+40
- Option I: 12.5/80-18 AS, ET0
- Option II: 500/45-20 AS, ET+50
Electric system
- Operating voltage: 12 V
Dimensions
- (A) Wheelbase: 1,960 mm
- (B) Chassis length: 4,420 mm
- (C) Overall length with standard bucket: 5,120 mm
- (D) Digging depth: 120 mm
- (E) Max. working height: 4,070 mm
- (G) Loading height with pallet forks: 3,175 mm
- (H) Max. dumping height: 2,700 mm
- (I) Front end height: 1,640 mm
- (J) Dumping width: 925 mm
- (K) Seat height: 1,290 mm
- (L) Protective roof height: from 2,410 mm
- (L) Cab height / option: 2,530 / from 2,410 mm
- (M) Max. bucket pivot point: 3,400 mm
- (N) Overall width / option: 1,740 / 1,720 - 1,820 mm
- (O) Inner turning radius: 1,830 mm
- (P) Outer turning radius: 3,550 mm
- (Q) Outer radius with standard bucket: 4.110 mm
Drive
- Traction hydraulics: Hydrostatic-automotive
- Axles: Original Schäffer axles, 8 wheel nut rim; planetary axle and automatic limited slip brake, swing axle at rear
- Speed / option: 0 - 20 km/h in 2 gear switchable under load / 0 - 30 km/h
Brakes and steering
- Service braking system: Combined brake hydrostatic and multi-disc brake
- Parking brake: Multi-disc brake running in oil bath
- Steering: Fully hydraulic articulated steering
Tank capacity
- Fuel: 82 l
- Hydraulic oil: 81 l
Working hydraulics
- Delivery rate / option: 64 l/min / 74 l/min
- Operat. pressure: 210 bar
Weights
- Operating weight protective roof incl. Original tyres, driver and standard bucket: 4,240 kg
- Operating weight cabin incl. Original tyres, driver and standard bucket: 4,390 kg
- Lifting capacity: 2,800 kg
- Tipping load, straight, pallet fork acc. to ISO 8313: 2,363 - 2,518 kg
- Tipping load, straight, bucket acc. to ISO 8313: 2,901 - 3,098 kg
- Tipping load, articulated, pallet fork acc. to ISO 8313: 2,000 kg
- Tipping load, articulated, bucket acc. to ISO 8313: 2,250 kg
Sounds and vibration
- Sound pressure level LpA: 76 db(A)
- Sound power level guaranteed LwA: 101 db(A)
- Sound power level equivalent LwA: 101 db(A)
- Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
- Total body vibration acc. to ISO 8041: <0,5 m/s²

Dimensions wheel loaders

tyres loader

Dimension	Diameter (mm) / Width (mm)	Rim offset	Loader width (mm)	Tread	Tread options
12.5/80-18	990 / 310	0	1,730	AS	MPT
15.5/60-18	950 / 440	40	1,740	AT-621
15.5/55-18*	900 / 400	50	1,720	A601
425/55-17*	900 / 425	50	1,745	AS
500/45-20	980 / 500	50	1,820	AS
400/70R-18	1.025 / 400	40	1,740	MPT A608	AS TH400
400/70R-18	1.025 / 400	0	1,820	Bibload
